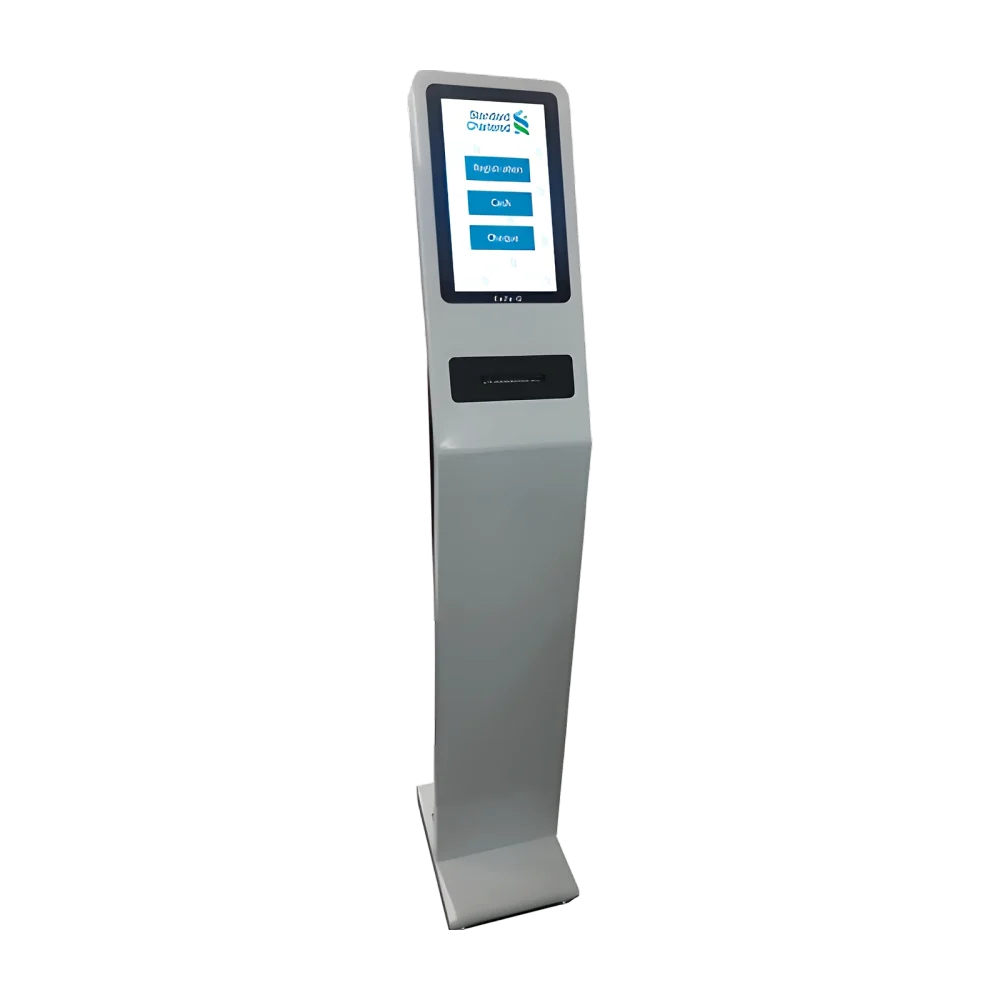

EQ-LK-25Token Dispenser Kiosk
A self-service token kiosk with a 13.3" LED touch display, painted metal body and integrated thermal printer, linked to the EaZy-Q main control system.
- Display
- 13.3” LED – Touch (different screen sizes are also available in this mo…
- Communication Interface
- Ethernet / Wi-Fi / USB / RS-232 / RS-485
- Power Supply
- AC-220 V
- Housing
- Painted Metal Body
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Overview
Key features
- Display: 13.3” LED – Touch (different screen sizes are also available in this model)
- Orientation: Standard Layout Landscape (Also available in Portrait Model)
- Control Board: EaZy-Q Integrated Board with High Speed Processor
- Dimensions: Height = 1430mm / Width = 460mm Thickness Top = 100mm / Bottom =300 mm (Dimensions will vary depending upon the Size & Orientation of the LED Screen)
- Housing: Painted Metal Body
- Token Printing Width: From 37mm to 80 mm
- Power Supply: AC-220 V
Technical specifications
| Display | 13.3” LED – Touch (different screen sizes are also available in this model) |
|---|---|
| Orientation | Standard Layout Portrait (Also available in Landscape Model) |
| Menu Options (Number of Services) | Standard Mode Up to 16 options under Single Page Menu Up to 100+ options under Multi-Page Menu (up to 8 pages) Advance Mode Up to 500+ options under Multi-Page Menu (up to 48 pages) (Advance mode requires integration with Matrix Multi-Media Control System) | |
| Housing | Painted Metal Body |
| Body Color | Metallic Silver (Other Colors Available) |
| Token Printer | High Speed Thermal Printer (with Auto-Cutter) |
| Token Printing Width | From 37mm to 80 mm |
| Token Printing Height | From 20mm to (Unlimited – depending upon the roll length) |
| Built-in Sub-Control | Integrated with EaZy-Q Main Control System |
| Communication Interface | Built-in: Ethernet / Wi-Fi / USB / RS-232 / RS-485 Optional: Line Tel. / GSM / GPRS / Blue-Tooth |
| Control Board | EaZy-Q Integrated Board with High Speed Processor |
| Memory | 320GB Built-in (Upgradeable to 4+TB) |
| Dimensions | Height = 1430mm / Width = 460mm Thickness Top = 100mm, Bottom =300 mm (Dimensions will vary depending upon the Size & Orientation of the LED Screen) |
| Maximum Dispensers per Location | 512 (Integrated) Unlimited (Independent) |
| Storage Temperature | 5° to 50°C |
| Storage Humidity | 5% to 9% (non-condensing) |
| Power Supply | AC-220 V |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Applications
Industry applications
Banking & Finance
Shorter branch waits, smarter staffing and real-time service insight.
Healthcare
Calmer patient flow, clear wayfinding and on-time appointments.
Government
One token across multiple departments for complex service journeys.
Education
Orderly admissions, registration and fee-payment peaks.
FAQ
Questions about this product
Is EQ-LK-25 available in other configurations?
Yes — see the specification table for alternative screen sizes, colours and optional interfaces. Our team can advise on the best configuration.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
