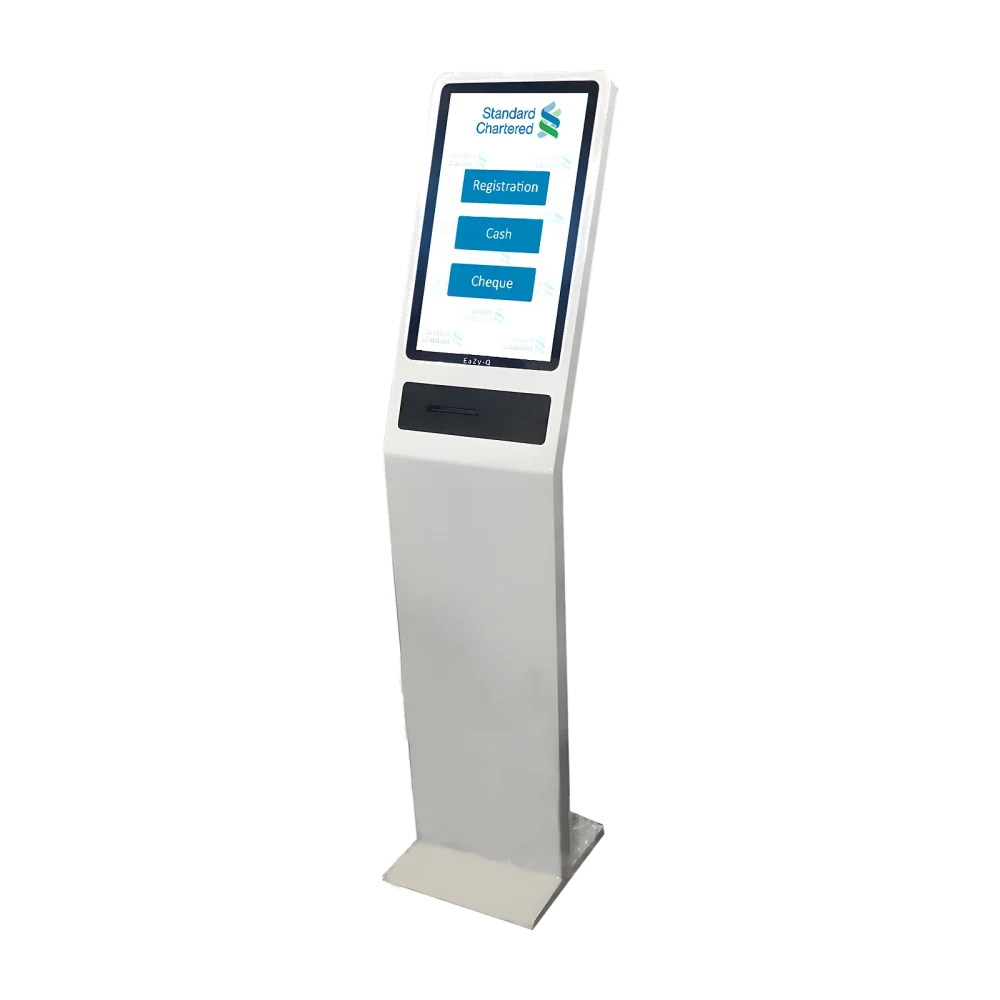

EQ-LK-26Floor-Standing Token Dispenser
A slim, commercial-grade floor kiosk with a 21.5" IPS touch screen, multi-level service menus and a high-speed thermal token printer — built for high-traffic branches.
- Display
- 21.5″ IPS LED – Commercial Grade
- Communication Interface
- Ethernet / Wi-Fi / USB / RS-232 / RS-485
- Power Supply
- Supports AC 110V to 240V
- Body Color
- Metallic Silver (Other Colors Available)
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Overview
Key features
- Display: 21.5” IPS LED – Touch (different screen sizes are also available in this model)
- Orientation: Standard Layout: Portrait (Also available in Landscape Model)
- Control Board: EaZy-Q Integrated Board with High Speed Processor
- Dimensions: Height = 1599.6mm / Width = 349mm Thickness: Top = 51.2mm / Middle = 178.5mm (Dimensions will vary depending upon the Size & Orientation of the LED Screen)
- Housing: Durable Metal Frame
- Token Printing Width: From 37mm to 80 mm
- Power Supply: AC 110V to 240V
Technical specifications
| Display | Standard: 21.5″ IPS LED – Commercial Grade (Also Available in 15.6″ / 17.3″ / 18.5″ / 26″ & 32″ Screen Sizes) |
|---|---|
| Orientation | Standard Layout Portrait (Also available in Landscape Model) |
| Menu Options(Number of Services) | Single / Multi-Level Menu Options (up to 4000+) (Multiple Selection of Services with Auto-Transfer Facility) |
| Housing | Durable Metal Frame (In Any Required Color) Moisture-Proof / Anti=Rust / Anti-Acid / Anti-Dust / Static-Free |
| Body Color | Metallic Silver (Other Colors Available) |
| Token Printer | High Speed Thermal Printer (with Auto-Cutter) |
| Token Printing Width | From 37mm to 80 mm |
| Token Printing Height | From 20mm to (Unlimited – depending upon the roll length) |
| Built-in Sub-Control | Integrated with EaZy-Q Main Control System |
| Communication Interface | Built-in: Ethernet / Wi-Fi / USB / RS-232 / RS-485 Optional: Line Tel. / GSM / GPRS / Blue-Tooth |
| Control Board | EaZy-Q Integrated Board with High Speed Processor |
| Memory | 1TB Built-in (Upgradeable to 4+TB) |
| Dimensions | For Standard (with 21.5-inch Display) Height & Width = 1599.6mm x 349mm Thickness (Depth) = 51.2mm (Top) / 178.5mm (Middle) (Dimensions for different Screen-Sizes would Vary) |
| Maximum Dispensers per Location | 512 (Integrated) Unlimited (Independent) |
| Storage Temperature | -10° to 75°C |
| Storage Humidity | 5% to 95% (non-condensing) |
| Power Supply | Supports AC 110V to 240V |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Applications
Industry applications
Banking & Finance
Shorter branch waits, smarter staffing and real-time service insight.
Healthcare
Calmer patient flow, clear wayfinding and on-time appointments.
Government
One token across multiple departments for complex service journeys.
Education
Orderly admissions, registration and fee-payment peaks.
FAQ
Questions about this product
Is EQ-LK-26 available in other configurations?
Yes — see the specification table for alternative screen sizes, colours and optional interfaces. Our team can advise on the best configuration.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
