EQ-LK-26
Floor-Standing Token Dispenser
- 21.5" IPS commercial-grade touch
- Up to 4,000+ menu options
- AC 110–240 V

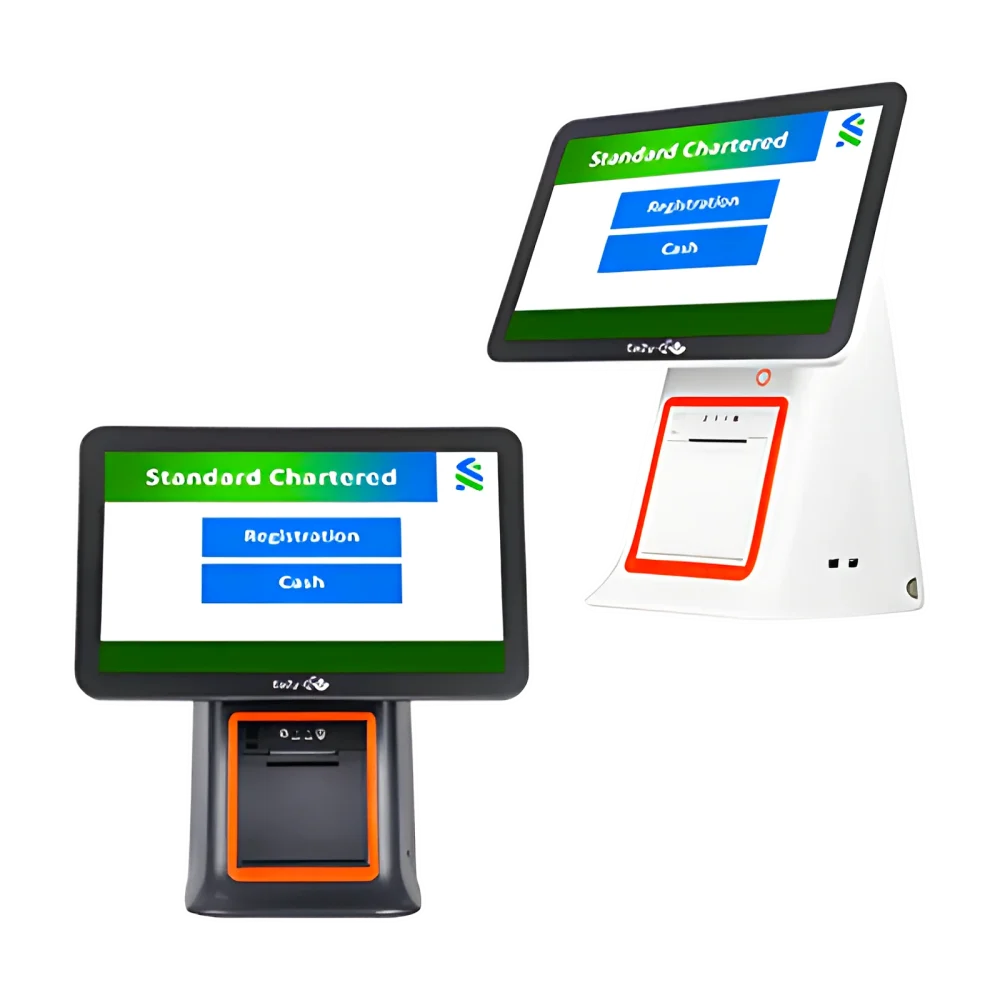

EQ-TD-11Desktop Touch Token Dispenser
A compact countertop dispenser available from 10.1" to 15.6", running Android or Windows, that can also act as queue server, feedback terminal or booking kiosk.
- Model – Screen Size
- 10.1-inch”, 11-inch”, 13.3-inch”, 15.6-inch”
- Display Type
- Std. LED
- Resolution
- 1024×600
- OS
- Option-1: Android Based (2GB/32GB)
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Overview
Key features
- Independent Token Dispenser (Direct)
- Main Control / Queue Server & Token Dispenser
- Master Dispenser (Integrated with Queue Server)
- Slave Dispenser (Integrated with Queue Server)
- Queue Token Dispenser + C.F.S.
- C.I.F.S. (Customer Information & Feedback System)
- Online Queue Token Booking Retrievals
- Meeting Rooms Booking Management … and more
Technical specifications
| Model – Screen Size | 10.1-inch”, 11-inch”, 13.3-inch”, 15.6-inch” |
|---|---|
| Display Type | Std. LED IPS LED |
| Visible Angle | 140°/140° 170°/170° |
| Resolution | 1024×600 1280×800 1920×1080 |
| Max. Number of Units | Up to 65,536 under Single Control (Depending upon No. of Channels for the Central Mgmt. Software) |
| OS | Option-1: Android Based (2GB/32GB) Option-2: Windows Based (i3/4GB/1TB) |
| Modes of Operation (Multi-Function Capability) | Independent Token Dispenser (Direct Token Issuance Only) Main Control System (Queue Server) + Standard Token Dispenser Master Token Dispenser (Integrated with the Queue Server) Slave Token Dispenser (Integrated with the Queue Server) Queue Token Dispenser + C.F.S. (Customer Feedback System) Queue Token Dispenser + C.I.S. (Customer Information System) C.I.F.S. (Customer Information & Feedback System) Online Booking Management (Queue-Booking) Queue Token Booking Retrieval System Meeting Rooms Management System Conference Rooms / Classrooms Booking Management …. And more |
| Communication Ports | Ethernet (Wi-Fi = Optional) |
| Supported Languages | English, French, German, Italian, Spanish, Arabic, Portuguese, Dutch and more… |
| Storage Temperature | -20˚C to 60˚C |
| Storage Humidity | 20% to 85% (Relative) |
| Operating Temperature | 5˚C to 45˚C (Ideal Temp. = Between 15˚C to 35˚C) |
| Power supply | 24V DC 2 AMP |
| Life Span | 40,000 to 50,000 Hours [Approximately 7 to 8 Years] (Life Span may vary depending upon the Environmental Conditions) |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Applications
Industry applications
Banking & Finance
Shorter branch waits, smarter staffing and real-time service insight.
Healthcare
Calmer patient flow, clear wayfinding and on-time appointments.
Government
One token across multiple departments for complex service journeys.
Education
Orderly admissions, registration and fee-payment peaks.
FAQ
Questions about this product
Is EQ-TD-11 available in other configurations?
Yes — see the specification table for alternative screen sizes, colours and optional interfaces. Our team can advise on the best configuration.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
Related
View categoryRelated products
EQ-LK-25
Token Dispenser Kiosk
- 13.3" LED touch display
- Up to 500+ services (advance mode)
- 37–80 mm thermal token printing
EQ-LK-27WM
Wall-Mount Token Dispenser
- 17.3" LED touch (15.6"–26" options)
- Up to 500+ services (advance mode)
- Built-in amplifier & speakers

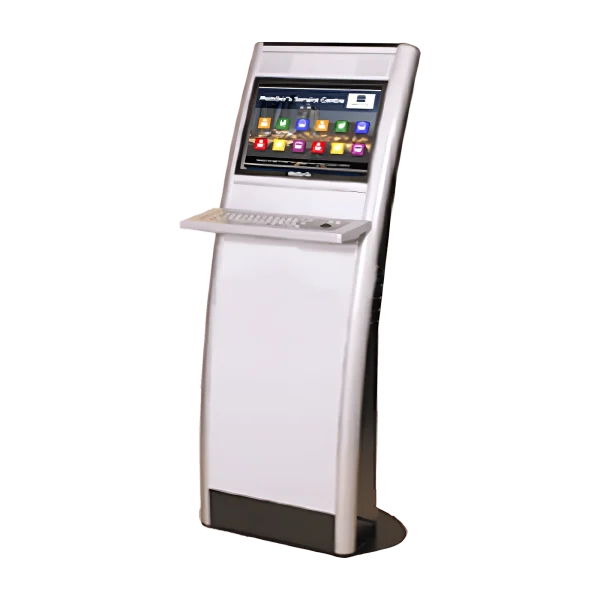

EQ-LK-07
