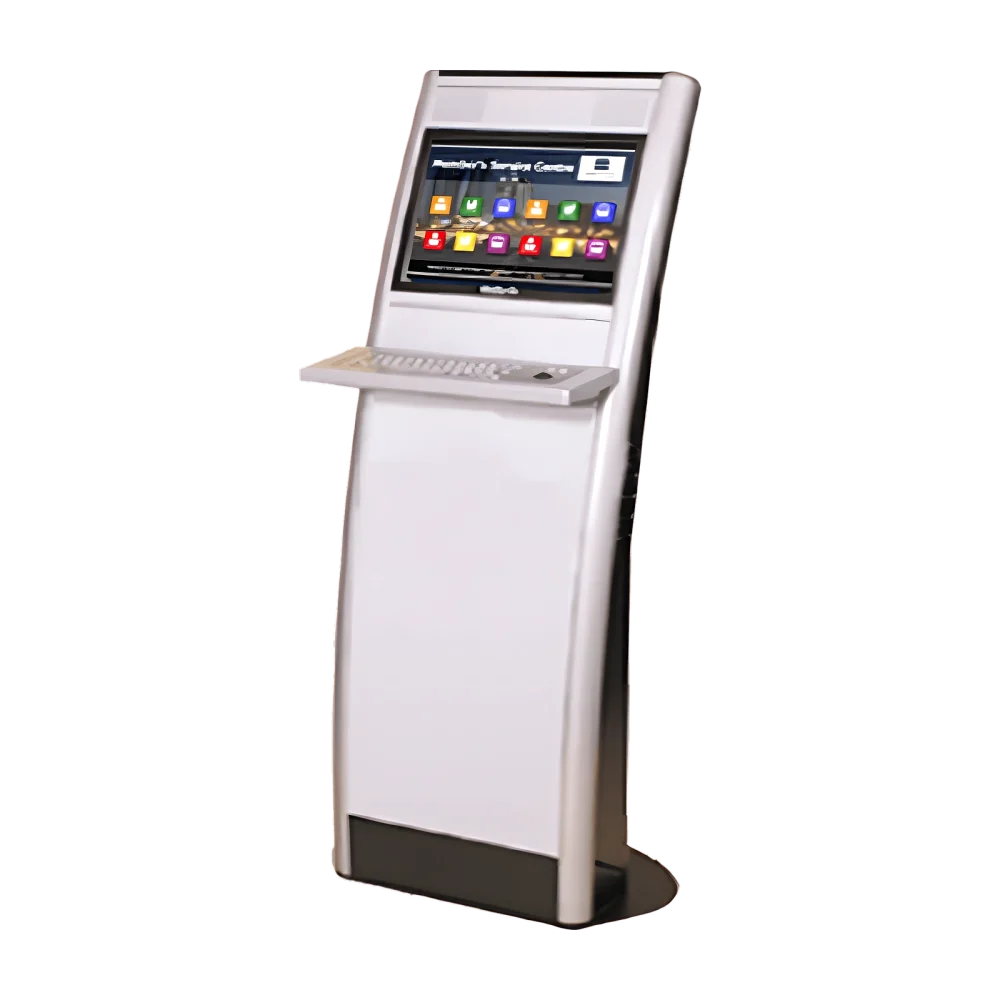

EQ-LK-07Kiosk Token Dispenser
A full-size kiosk with screen options from 15.6" to 24", an Intel i3/i5/i7 processor and optional metal keyboard or trackball — ideal for token issue and self-service information.
- Display (Available Sizes)
- 15.6” / 17” / 19” / 21.6” / 24” LED Screen
- User Interface
- Touch Screen (Standard)
- Communication Interface
- Ethernet / Wi-Fi / USB
- Processor
- Intel i3 (Standard) + 4GB RAM / i5 or i7 Optional
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Overview
Key features
- Display (Available Sizes): 15.6” / 17” / 19” / 21.6” / 24” LED Screen
- Orientation: Landscape (Standard) (Also available in Portrait Mode)
- Control Board: EaZy-Q Integrated Board with High Speed Processor
- Housing: Painted Metal Body
- Processor: Intel i3 (Standard) + 4GB RAM / i5 or i7 Optional
- Memory (HDD Capacity): 500GB Built-in (Upgrade-able to 4+TB)
- Sound: Built-in Sound Amplifier & Mini-Speakers
- Power Supply: AC 110V / 220 V (Auto-Switchable
Technical specifications
| Display (Available Sizes) | 15.6” / 17” / 19” / 21.6” / 24” LED Screen |
|---|---|
| User Interface | Touch Screen (Standard) Metallic Keyboard / Touch-Pad / Tracker-Ball (Optional) |
| Orientation | Landscape (Standard) (Also available in Portrait Mode) |
| EaZy-Q Software Module (Number of Services) | Standard Mode Up to 16 options under Single Page Menu Up to 100+ options under Multi-Page Menu (up to 8 pages) Advance Mode Up to 4K+ options under Multi-Page Menu (up to 256 pages) | |
| Housing | Painted Metal Body |
| Body Color | Metallic Silver with Dark-Grey Contrast (Other Color-Schemes also available Optional) |
| Token Printer | 80mm High Speed Thermal Printer (with Auto-Cutter) 37mm / 56mm also available (Optional) |
| Token Printing Width | From 37mm to 80 mm |
| Token Printing Height | From 20mm to (Unlimited – depending upon the roll length) |
| Built-in Sub-Control | Integrated with EaZy-Q Main Control System |
| Communication Interface | Built-in: Ethernet / Wi-Fi / USB Optional: RS-232/485 / Modem / GSM / GPRS / Blue-Tooth | |
| Processor | Intel i3 (Standard) + 4GB RAM / i5 or i7 Optional |
| Sound | Built-in Sound Amplifier & Mini-Speakers |
| Memory (HDD Capacity) | 500GB Built-in (Upgrade-able to 4+TB) |
| Dimensions | Height = 1430mm / Width = 460mm Thickness Top = 100mm / Bottom =300 mm (Dimensions may vary depending upon the Size & Orientation of the LED Screen) |
| Storage Temperature | -10° to 75°C |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Applications
Industry applications
Banking & Finance
Shorter branch waits, smarter staffing and real-time service insight.
Healthcare
Calmer patient flow, clear wayfinding and on-time appointments.
Government
One token across multiple departments for complex service journeys.
Education
Orderly admissions, registration and fee-payment peaks.
FAQ
Questions about this product
Is EQ-LK-07 available in other configurations?
Yes — see the specification table for alternative screen sizes, colours and optional interfaces. Our team can advise on the best configuration.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
