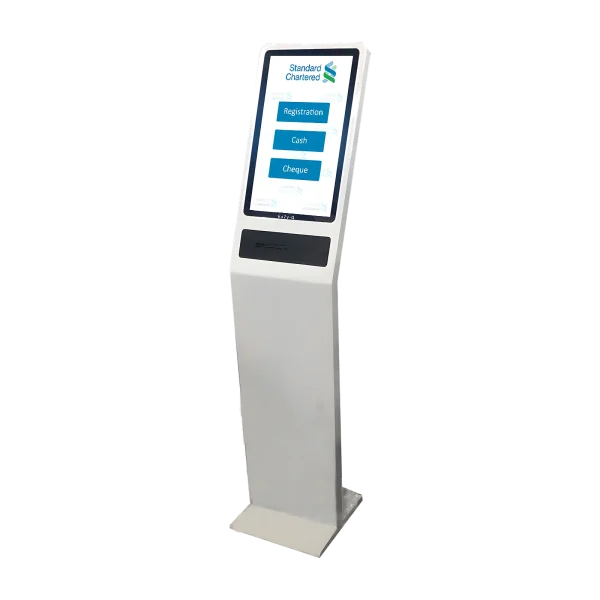

EQ-LK-26
Floor-Standing Token Dispenser
- 21.5" IPS commercial-grade touch
- Up to 4,000+ menu options
- AC 110–240 V
EaZy-Q®Thermal Token Printers

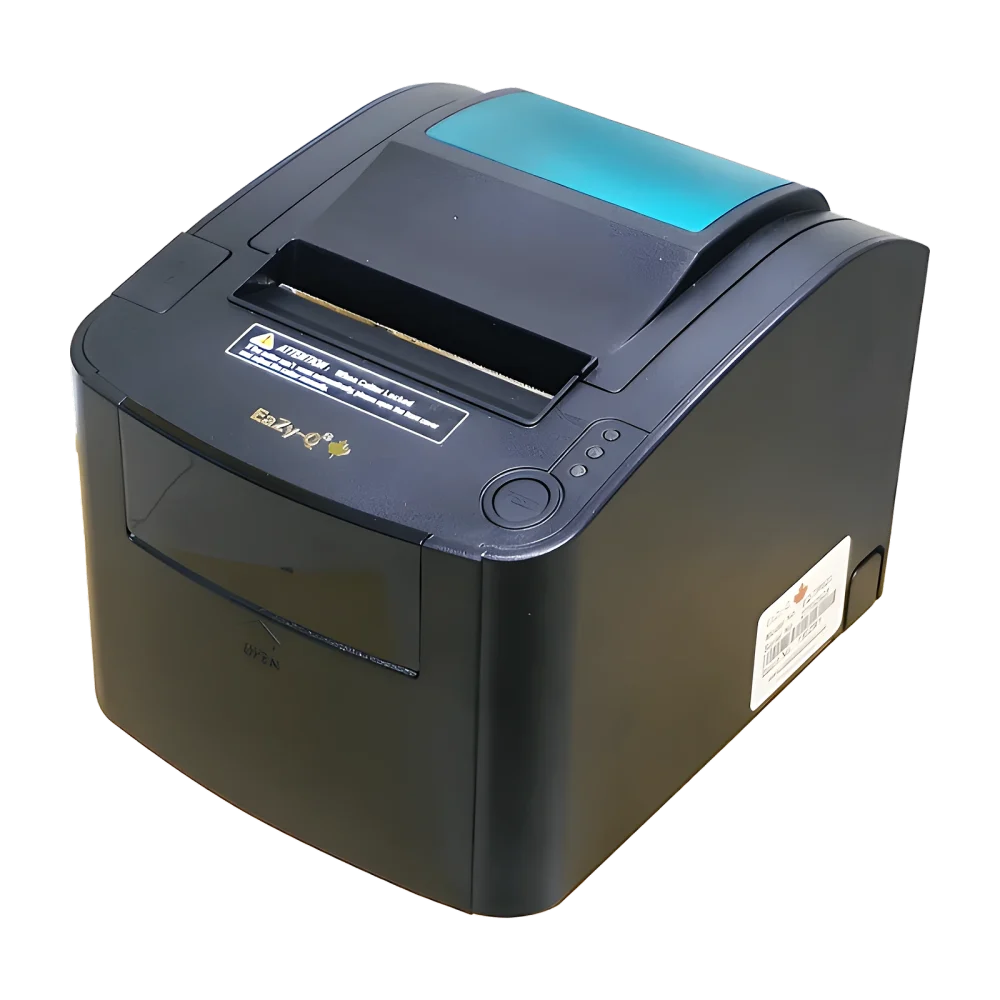

EQ-TP-803Thermal Token Printer
An 80 mm direct-thermal token printer family (EQ-TP803 / 802 / 801) with print speeds up to 300 mm per second and serial, USB and Ethernet interfaces.
- Print Speed
- 300mm / Sec. / 250mm / Sec. / 160mm / Sec.
- Interface
- Serial + USB + Ethernet
- Power supply
- DC 24V/2.5A
- Operating system
- Windows, OPOS, Linux / Windows
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Overview
Key features
- Model : EQ-TP803 / EQ-TP802 / EQ-TP801
- Print speed : 300mm / Sec. / 250mm / Sec. / 160mm / Sec.
- Print Method : Direct thermal printing.
- Paper width : 80mm
- Dot density : 584 Dots / Line (203 dpi)
Technical specifications
| Model | EQ-TP803 / EQ-TP802 / EQ-TP801 |
|---|---|
| Print Speed | 300mm / Sec. / 250mm / Sec. / 160mm / Sec. |
| Print Method | Direct Thermal Printing |
| Emulation / Compatibility | ESC / POS & Line/T Command Sets / ESC / POS / ESC / POS |
| Paper Width | 80mm |
| Dot density | 584 Dots / Line (203 dpi) |
| Paper roll | 80mm Width / 83mm Diameter (Max) |
| Paper thickness | 0.06~0.08mm |
| Interface | Serial + USB + Ethernet |
| Data buffer | 128K bytes |
| Barcode Support | Yes |
| Power supply | DC 24V/2.5A |
| Print head life | 150 Km / 140 Km |
| Auto cutter life | 1.5 million cuts / 1 MILLION |
| Work environment | Temperature: 0 ~ 45℃ Humidity: 10 ~ 80% |
| Storage environment | Temperature: 10 ~ 60℃ Humidity: 10 ~ 90% |
| Operating system | Windows, OPOS, Linux / Windows |
| Net Weight | 0.85kg / 1.3kg / 2.1kg |
| Dimension (W x L x H) | 139 x 181 x 127mm / 152 x 200 x 138mm / 195 x 160 x 145mm |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Applications
Industry applications
Banking & Finance
Shorter branch waits, smarter staffing and real-time service insight.
Healthcare
Calmer patient flow, clear wayfinding and on-time appointments.
Government
One token across multiple departments for complex service journeys.
Education
Orderly admissions, registration and fee-payment peaks.
FAQ
Questions about this product
Is EQ-TP-803 available in other configurations?
Contact our team to discuss configuration options for your project.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
Related
View categoryRelated products

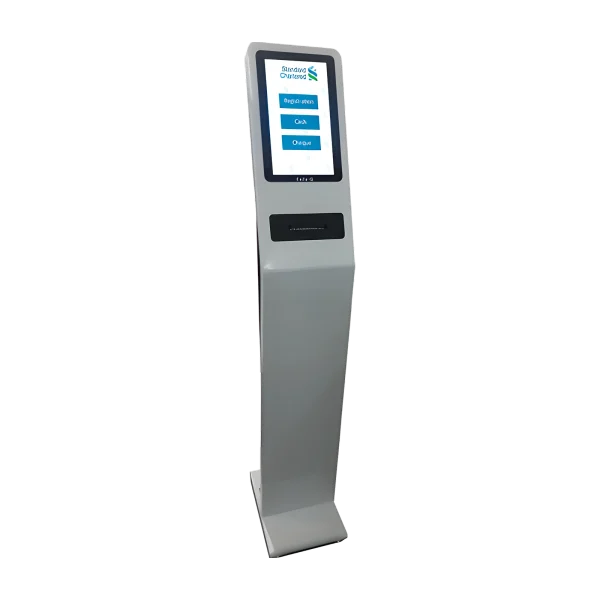

EQ-LK-25
Token Dispenser Kiosk
- 13.3" LED touch display
- Up to 500+ services (advance mode)
- 37–80 mm thermal token printing

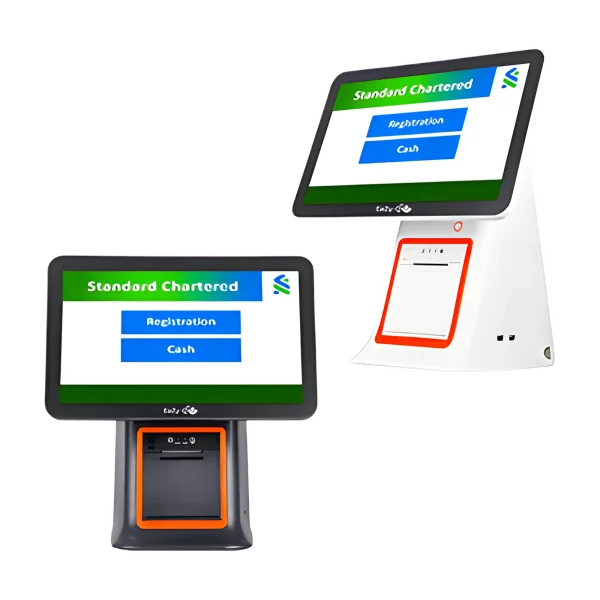

EQ-TD-11
Desktop Touch Token Dispenser
- 10.1" to 15.6" screen options
- Android or Windows based
- Up to 65,536 units, one control

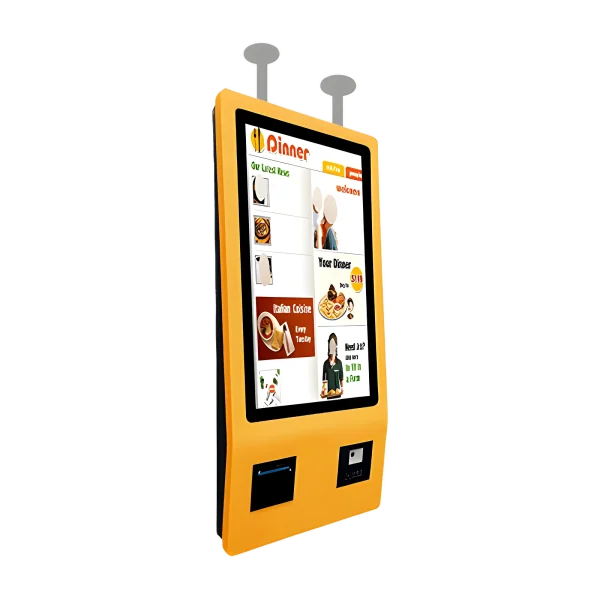

EQ-LK-27WM
