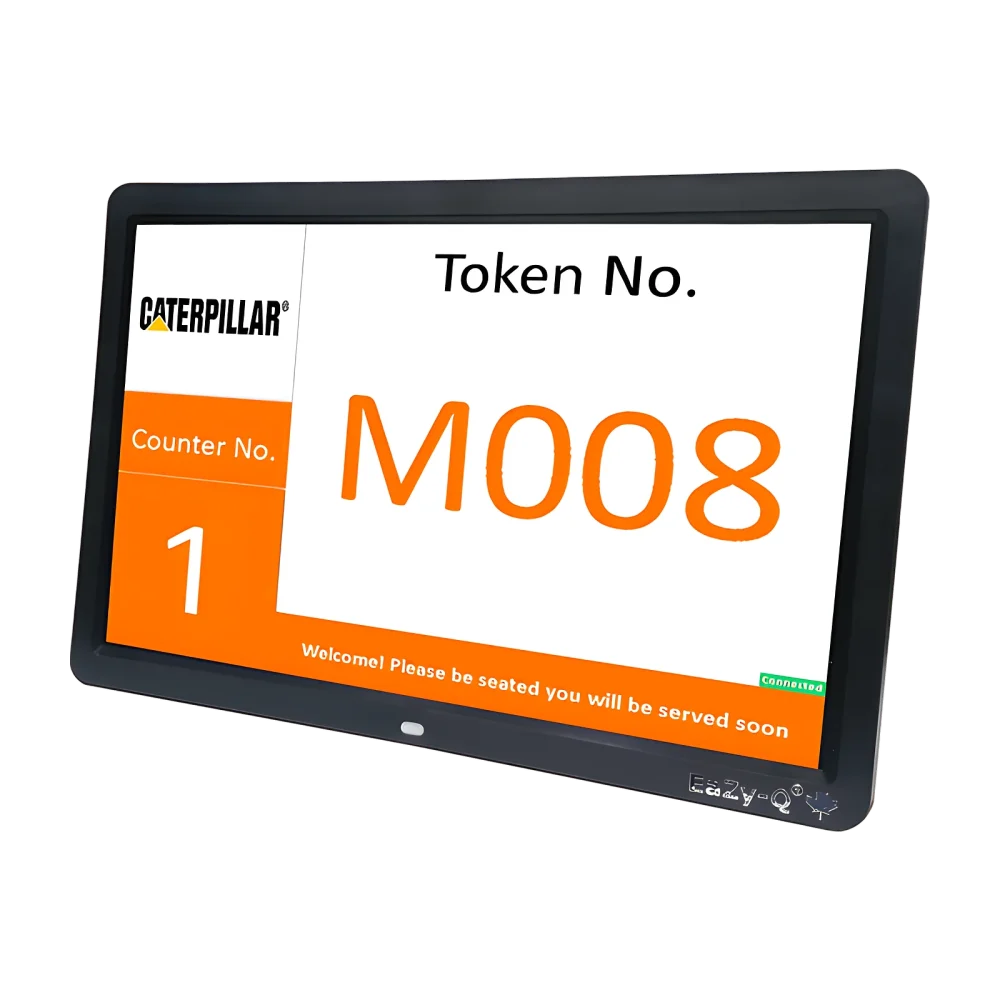

EQ-LD-15IPS Counter Display
A 15" IPS counter display that shows the token being served and doubles as a promotion, announcement or live-dashboard screen.
- Model – Display Size
- EQ-LD7 – 7”
- Max. Number of Displays (Under Single Control)
- Up to 4 / 8 / 16 / 32 / 64 / 96 / 128 / 512 / 1024 / 4096
- OS
- Android (Standard) / Linux (Optional)
- Display Proportion
- 16:9, 4:3
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Key features
- With IPS Technology
- Counter Display for Queue Management System
- Multi-Media Promotions (Pre-Defined Schedule or for 24 Hours)
- Customer Information (Service Areas / Lobbies / Elevators, etc.)
- Corporate Messaging.
- In-house Promotions (Videos / Pictures / Messages).
- 3rd Party Advertisements (Revenue Generation).
- Live Dashboard (For Supervisors / Managers).
- OS : Android (Standard) / Linux (Optional).
- Storage Temperature: -10˚ to 75˚C
- Power Supply: 5V DC 1 AMP, 12V DC 1.5 AMP, 12V DC 2 AMP.
Technical specifications
| Model – Display Size | EQ-LD7 – 7” EQ-LD8 – 8” EQ-LD10 – 10.2” EQ-LD12 – 12” EQ-LD15 – 15” EQ-LD17 – 17” EQ-LD19 – 19” |
|---|---|
| Max. Number of Displays (Under Single Control) | Up to 4 / 8 / 16 / 32 / 64 / 96 / 128 / 512 / 1024 / 4096 (Depending upon the Main Control System) |
| OS | Android (Standard) / Linux (Optional) |
| Modes of Operation | Counter Display for Queue Management System Multi-Media Promotions (Pre-Defined Schedule or for 24 Hours) Customer Information (Service Areas / Lobbies / Elevators, etc.) Announcements / Instructions (to Specific or All Departments) In-house Promotions (Videos / Pictures / Messages) 3rd Party Advertisements (Revenue Generation) Live Dashboard (For Supervisors / Managers) |
| Display Proportion | 16:9, 4:3 |
| Resolution | 16:9 – 800×480 4:3 – 800×600 4:3 – 1024×600 4:3 – 800×600 4:3 – 1024×768 4:3 – 1280×1024 |
| Response Time | 50 to 100 Milliseconds |
| Effective Visible Angle | 120° L / 120° R |
| Available Storage Memory | Standard 4GB (Upgradeable to 32GB) |
| Communication | Standard > USB & Wi-Fi Optional > Ethernet / PoE (EQ-LD10 & above) / Bluetooth / 3G / NFC |
| Audio | Built-in Stereo Speakers (with MP3 / WMA play option) |
| Pictures / Video Option | JPG / JPEG / MPEG1 / MPEG 2 / MPEG 4 / AVI |
| Languages | English, French, German, Italian, Spanish, Arabic, Portuguese & Dutch |
| Storage Temperature | -20˚C to 60˚C |
| Storage Humidity | 20% to 80% (Relative) |
| Operating Temperature | 5˚C to 40˚C (Ideal Temp. = Between 20˚C to 25˚C) |
| Power Supply | 5V DC 1 AMP, 12V DC 1.5 AMP, 12V DC 2 AMP |
| Life Span | 40,000 to 60,000 Hours [Approximately 4 to 7 Years] (Life Span may vary depending upon the Environmental Conditions including Operating Temperature, Humidity, Power Stability, Exposure to Sunlight, etc.) |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Industry applications
Banking & Finance
Shorter branch waits, smarter staffing and real-time service insight.
Healthcare
Calmer patient flow, clear wayfinding and on-time appointments.
Government
One token across multiple departments for complex service journeys.
Education
Orderly admissions, registration and fee-payment peaks.
Questions about this product
Is EQ-LD-15 available in other configurations?
Yes — see the specification table for alternative screen sizes, colours and optional interfaces. Our team can advise on the best configuration.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
