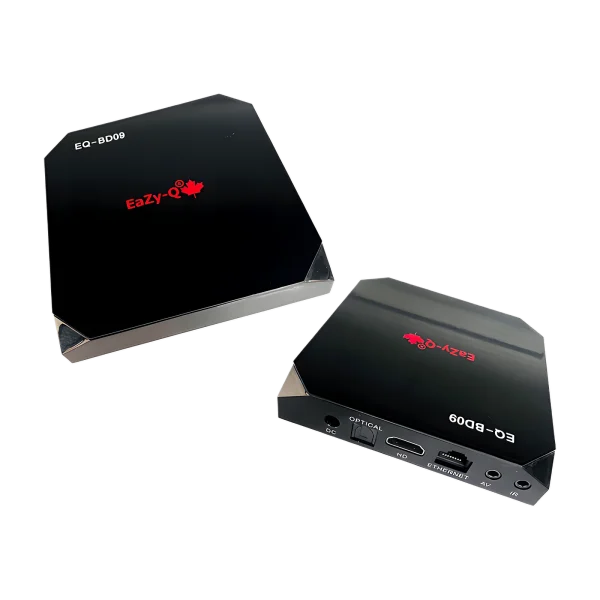

EQ-BD-09
Multimedia Player
- Quad-core, 2 GB RAM, 16–64 GB
- Full HD 1920×1080 output
- Up to 65,536 units centrally managed

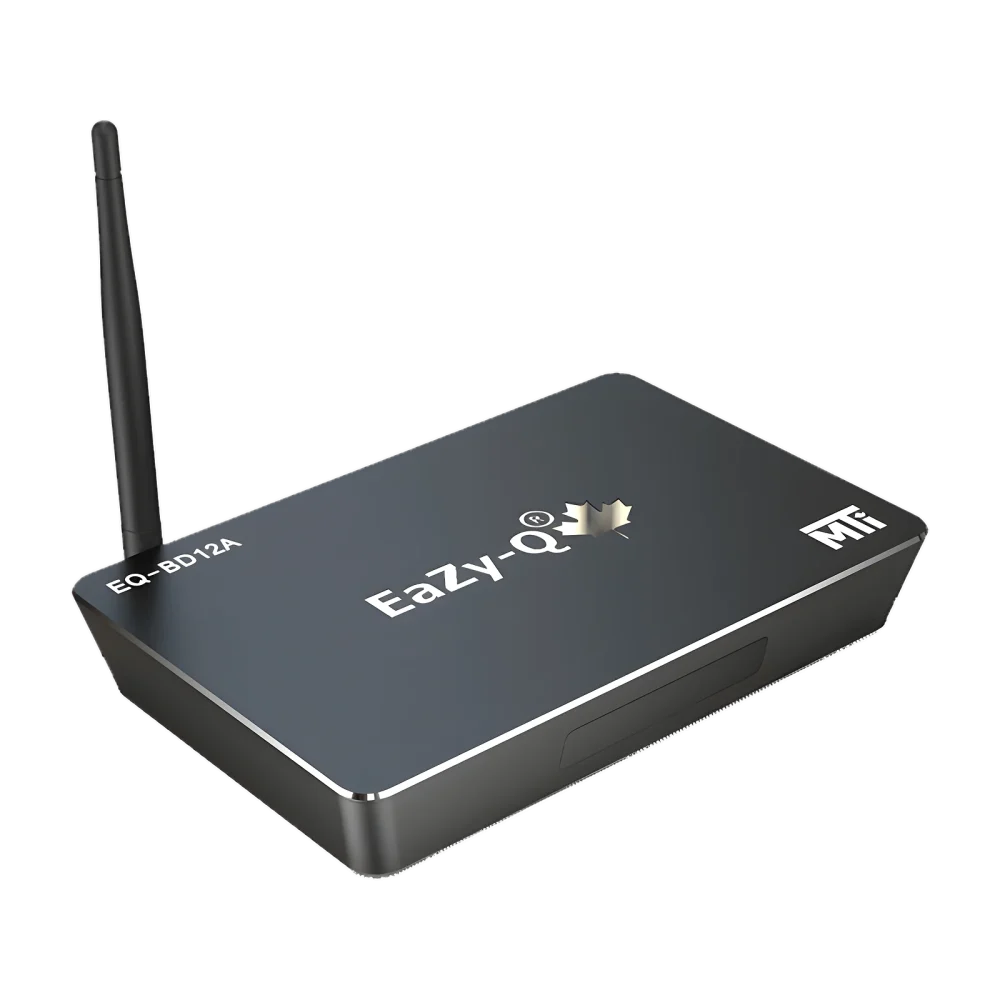

EQ-BD-12AMultimedia Player
An octa-core, metal-cased media player with Ultra HD 4K output that drives EaZy-Q main displays or stand-alone EaZy-View digital signage.
- Processor
- Octa Core
- RAM
- 2GB
- Display Proportion
- 16:9 / 4:3 (User Definable)
- Graphic Display
- Ultra HD – 4K
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Overview
Key features
- Digital Signage / Multimedia
- Customer Information (General / Interactive)
- Live Dashboard (For Administrator / Operations Manager)
- Quick Instructions Display (to Warehouse, Stores, Kitchen, etc.)
- Display Proportion: 16:9 / 4:3 (User Definable)
- Power Supply: 5V DC 1Amp
- Video Streaming Support: At Low Definition, At High-Definition
- Storage Temperature: -20˚C to 60˚C
- Operating Temperature: 5˚C to 40˚C
Technical specifications
| Processor | Octa Core |
|---|---|
| RAM | 2GB |
| Built-in Memory | 32GB (Up to 128GB) |
| External HDD Support | Up to 2TB HDD via External USB Port |
| Max Number of Units (Central Management) | Up to 65,536 under Single Control (Depending upon No. of Channels for the Central Management Software ) |
| Casing | Metal |
| Antenna | High Powered |
| Modes of Operation (Multi-Function Capability) | ♦ As Main Display for Queue Management Systems ♦ Multimedia Player (Can Manage Single or Multiple Playlists) ♦ Customer Information (General / Interactive) ♦ Notice Board & Event Management (at Main Entrance & Hotel Lobby) ♦ Corporate Messaging (Floors / Area Wise) ♦ In-House & 3rd Party Promotions (Videos / Pictures / Messages) ♦ Live Dashboard (For Administrator / Operations Manager) ♦ Quick Instructions Display (to Warehouse, Stores, Kitchen, etc.) |
| Display Proportion | 16:9 / 4:3 (User Definable) |
| Graphic Display | Ultra HD – 4K (with Mali 400 Graphic Accelerator) |
| Video Streaming Support | At High Definition |
| Video Support Formats | H.263 / H.264 / VC-1 / WMV / DV / XVID / VP6,8 / MPEG1,2,4 / RM / REAL(RMVB) / FLV / MOV / VOB / AVI / MKV / M2TS / F4V/ ASF / 3GP |
| Audio Support Formats | MP3 / WMA / APE / Flac / WMA / 3GP / AAC / ADPCM / AMR / M4A / MID / OGG / PCM / WAV |
| I/O Interface | HDMI / AV Cabled Ethernet / Wi-Fi / USB / USB-Host Bluetooth (Optional) / 3G (Optional) |
| Storage Temperature | -20˚C to 60˚C |
| Operating Temperature | 5˚C to 45˚C |
| Power Supply | 5V DC 1Amp |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Applications
Industry applications
Retail
Accurate shelf prices, in-aisle promotions and self-service help.
Hospitality
Kiosks, wayfinding and elevator promotions for hotels and resorts.
Healthcare
Calmer patient flow, clear wayfinding and on-time appointments.
Banking & Finance
Shorter branch waits, smarter staffing and real-time service insight.
FAQ
Questions about this product
Is EQ-BD-12A available in other configurations?
Yes — see the specification table for alternative screen sizes, colours and optional interfaces. Our team can advise on the best configuration.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
