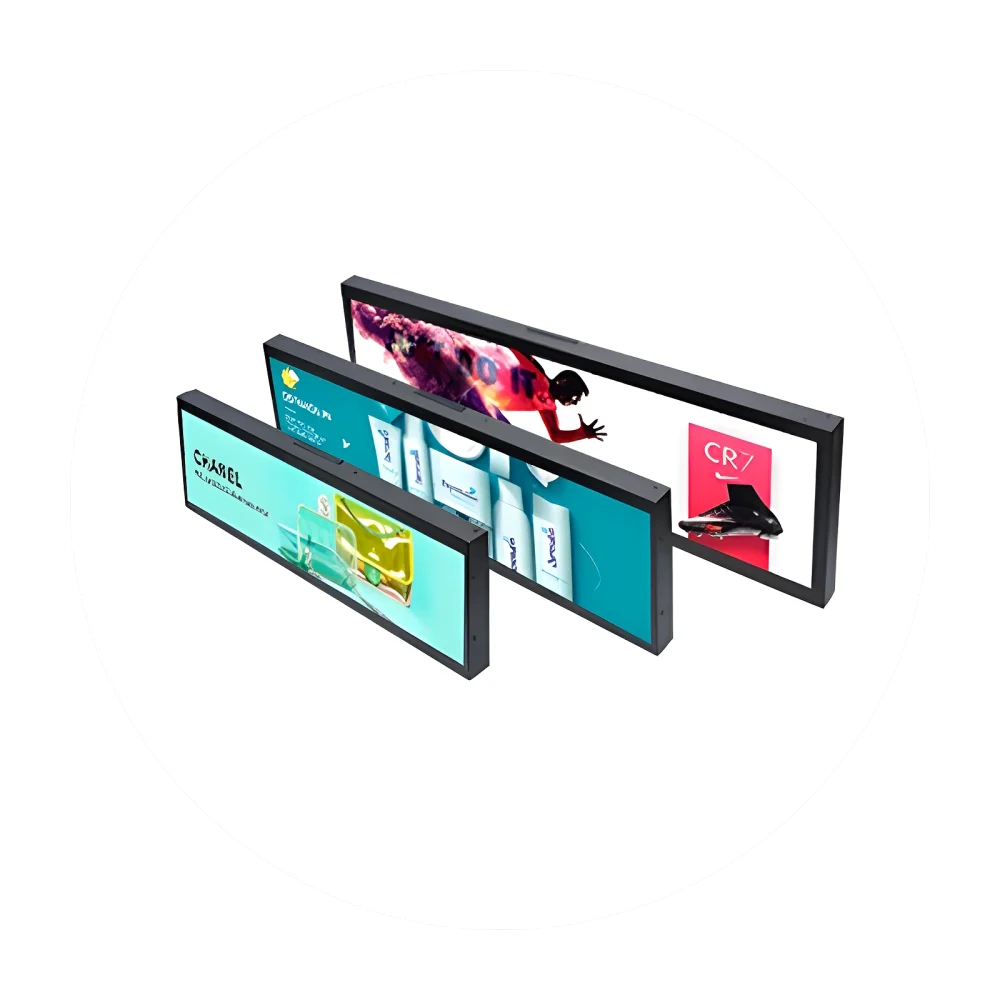

EQ-SLD47B47.1″ Stretched Shelf Display
A 47.1-inch ultra-wide, commercial-grade shelf-edge display (500 cd/m²) that brings live prices and promotions to the aisle.
- Display size
- 47.1-inch
- Resolution
- Not published — to be confirmed
- Brightness
- 500 cd/m²
- Memory / RAM
- 2GB DDR3
Smart Matrix General Trading LLC · +971 4 251 6295 · info@smartmatrixuae.com · easy-tag.ca/
Overview
Key features
- Centralised, web-based content and price updates
- Split-screen video, images and text
- Scheduled auto on/off for power saving
- Live dashboard monitoring
Technical specifications
| Display size | 47.1-inch |
|---|---|
| LCD dimensions | 1196.2mm x 49.8mm |
| Overall dimensions | 1214.2mm x 67.7mm x 28.2mm |
| Resolution | Not published — to be confirmed |
| Brightness | 500 cd/m² |
| Backlight | WLED |
| Viewing angles | 178°(H) x 178°(V) |
| CPU | Quad Core ARM Cortex – A55 |
| Memory / RAM | 2GB DDR3 |
| Built-in storage / ROM | 8GB EMMC (upgradable) |
| OS / System | Android 9 (or above) |
| Interfaces | TF Card / Micro USB (OTG) / USB 3.0 / USB Type-C |
| Timing clock / RTC | Advance and scheduled auto timing on/off (for power saving and increased life span) |
| Network | 2.4 G / Wi-Fi |
| Split-screen contents | Multi-division and split screen (videos, images and text at the same time) |
| Terminal monitoring | Centralized monitoring and control (with live dashboard) |
| Content release | Live and scheduled updates (ad-hoc broadcasting + pre-defined playlist) |
| Metal structure | Ultra-thin design (commercial grade) |
| Storage temperature | 20°C to 60°C |
| Operating temperature | 0°C to 50°C |
| Power | 100 – 240 V (50 / 60 Hz) <= 35 W |
Specifications as published by Smart Matrix. Subject to change; confirm with our team for your configuration.
Downloads
A datasheet for this product is available on request. Request datasheet
Applications
Industry applications
FAQ
Questions about this product
Is EQ-SLD47B available in other configurations?
Contact our team to discuss configuration options for your project.
How do I get a price?
Request a quotation and a Smart Matrix specialist will respond within one business day with pricing for your configuration and quantity.
Do you provide installation and support?
Yes. Smart Matrix provides installation, integration and 24/7 support from Dubai.
